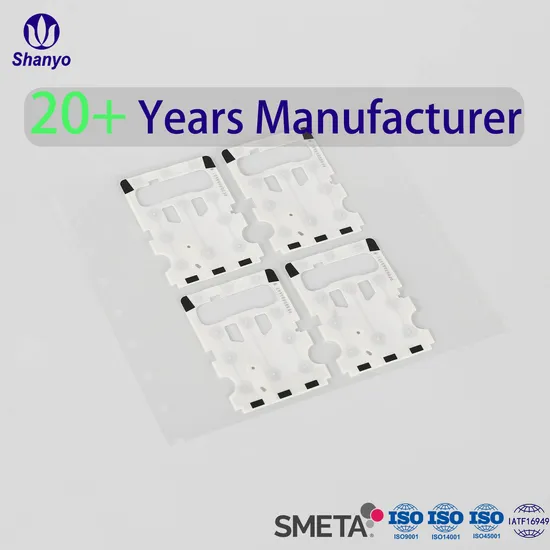

Source Factory Custom Design Tactile Contact Membrane Switches Dome Arrays Used in Steering Wheel Controls

• Overview
• Product Description
• Company Profile
• FAQ

Overview

Basic Info.

Material	Metal
Usage	Control Switch, Stainless Steel
Application	Home Appliance, Telecommunication Equipment, With Remote Control, Calculator, Camera, Industrial Controls
Contact Type	Type b Contact
Number of Switch	Double Control Switch
Detection Method	Correlation Type
Brand	Shanyo
Certification	ISO9001, CE, CCC
Sample	Free
Size Tolerance	+/-0.1mm
Color	Clear Metal Color
Dimension/Shape	OEM Service
Keypad Button Material	Metal
Transport Package	Standard Export Package or as Reruired.
Specification	Customization
Trademark	Customization
Origin	China
Production Capacity	6000000PCS/Day

Product Description

Product Description

Dome arrays are an excellent way of enhancing the tactile feel of a rubber key mat and can be adhered directly to a PCB with an overlay to create a tactile switch effect. The arrays are each custom developed to individual requirements and specifications and designs can be as simple or as complicated as the customers' application warrants – from one or two domes in a simple single layer on a polyester backing to large panels incorporating a number of domes in a designated pattern, to those requiring spacers and EMI shielding layers. Different sizes and types of domes can also be incorporated into the array design; round, oblong and triangle, with or without dimple, feet, and legs.The benefits of metal dome arrays
Broadly, there are five benefits to using a metal dome array in your membrane switch:They offer tactile feedback
They're durable (1 million+ actuations)
They're thin and lightweight
They're highly customizable
They're low-cost

Item	Value
Place of Origin	Guangdonng,China
Brand Name	HMTC
Type	Metal Dome Array
Used for	on LGF ,PCB,UV protrusions,Double-sided tape,Insulating sheet
Application	Various Industries
Keypad Button Material	Stainless Steel
Surface Treatment	Gold,silver,nickl
Feature	Waterproof,dust-proof,anti-scratch
Adhesive	M467 or Custom
Metal dome trip	0.12-0.6mm(custom as per requirement)
Thickness	0.075-0.15mm(as per requirement)
Life time	0.3-1 million times
Size Tolerance	±0.01mm
Certification	ROHS application
OEM Service	Acceptable
Working pinciple	The metal dome on the film keypad is located on the conductive part of the PCB board (mostly located above the gold finger on the circuit board), when pressed, the center point of the dome is concave and touches the circuit on the PCB, thus forming a circuit through which the current passes and the whole product can work normally.

Company Profile

COMPANY CORE ADVANTAGE

1: Share innovation: actively communicate with domestic and foreign counterparts, cooperate, share technological achievements, constantly develop more new products to enrich the product catalogue of enterprises, and strive to develop with old and new customers and colleagues in the industry who patronize our company.

2: Professional: The company specializes in the research and development and production of metal shrapnel/pot pan disc and conductive film of metal shrapnel. It has very rich experience and can provide different shrapnel solutions according to customers 'needs.

3: Overseas Quality: Since its establishment, it has been keeping pace with the times, improving the quality of metal shrapnel and conductive film of metal shrapnel to meet the harsh requirements of customers all over the world. The reliability and long-term stability of product quality have been continuously praised by foreign customers, and the quality has been rising steadily.

4: Rich products: from round, cross (four corners), waist round shrapnel to custom shrapnel, from single-layer structure, double-layer structure, EMI printing, Rubber structure

5: Strict control: from the purchase of raw materials, mold design and production, product production, quality testing, packaging sales and other aspects of strict operation in accordance with the requirements of ISO 9001:2015, to ensure the consistent reliability of products.

6: High-quality service: punctual delivery; free technical solutions and samples; quick response (domestic customers respond 2 hours after mail receipt, foreign customers respond 12 hours); after-sales service 1 hour fast processing.

FAQQ1: What are the main business activities of Shanyo Precision Electronics Technology Co., Ltd.?
A1: We are a professional manufacturer specializing in the R&D and production of precision electronic components. Our main products include metal domes, precision stamped parts, FPC flexible circuits, light guide plates, PCB circuits, etc., which are widely used in consumer electronics, automotive electronics, medical devices, smart home systems, and other fields.Q2: Do your products comply with international standards?
A2: Yes, we have obtained ISO9001:2015,ISO14001:2015,ISO45001:2015,IATF16949:2015,Sedex2p certifications, and strictly adhere to environmental standards such as RoHS and REACH to ensure our products meet global market requirements.Q3: Do you support customized production?
A3: Absolutely! We provide ODM/OEM services and can customize materials, dimensions, surface treatments, etc., according to customer requirements. We also offer DFM (Design for Manufacturability) optimization suggestions.Q4: Who are your notable partners?
A4: We have established long-term cooperative relationships with internationally renowned companies such as Tesla, Amazon, and Goertek, and we continue to expand our global market presence.Q5: How can I request a quotation or sample support?
A5: You can contact us through the following channels: Our engineering team will respond to your inquiry with in 24 hours.
